Louvers | Storm Resistant and Hurricane Rated Louvers

We carry a wide range of Storm-Resistant and Hurricane Louvers to meet the exacting task of providing ventilation, sightproofing, air intake, and air exhaust while preventing damage from the effects of severe weather including high-velocity wind-driven rain intrusion, high wind pressure, and projectile impact. Many of our customers lie within the Hurricane Prone Region, and with the louver specifications revised to require Hurricane-Rated products, we have recently developed a number of new models to satisfy their needs.  Our Storm-Resistant products have been rigorously tested for wind-driven rain penetration and missile impact, while all of our Hurricane-Rated products come either Florida Product Approved, Miami-Dade Rated, or carry both certifications.  Our Hurricane Products also come AMCA 540 certified, with some bearing the AMCA 550 certification as well either stand-alone or with the addition of a control damper behind the louver.

Louver blade configurations are designed to accomplish a high degree of storm- and hurricane resistance while still offering high free area and minimal pressure drop.  We have developed both Miami-Dade and Florida Product Approved louvers with horizontal drainable blade, horizontal chevron blade, and vertical chevron blade configurations, allowing the customer to select the style that best suits the needs of their project without sacrificing performance.

Our Storm-Resistant and Hurricane-Rated models are all fabricated from extruded aluminum and are capable of being finished with our in-house AAMA 2604 and AAMA 2605 Powder Coating for an added degree of weather protection and aesthetic appeal.

Please click on the orange triangles below for further information regarding each model including product submittals.  The table below also displays the relevant AMCA Certification for each model, as well as the blade type and other essential statistics.

Model Blade Style Depth Blade
Angle
Blade
Spacing
Free Area
48 x 48
Area Velocity
FPM
DEM-05
AMCA 511 Certified
Blade Style: Drainable/Sightproof
Depth: 5"
Blade Angle: 30°
Blade Spacing: 2"
Free Area 48 x 48: 47%
Area Velocity FPM: 1250
Details

Model DEM-05 wind-driven rain horizontal drainable blade louver provides maximum weather protection in a 5" (127) deep frame, with pleasing sight-proof aesthetics that compliment any structure’s exterior styling. Suitable for use in...
Read More »

1604DHPF
AMCA 500, AMCA 540, FL Product Approved
Blade Style: Drainable Blade
Depth: 4"
Blade Angle: 37.5°
Blade Spacing: 3"
Free Area 48 x 48: 57%
Area Velocity FPM: 954
Details

AMCA 500, AMCA 540, FL Product Approved

1605WDF
AMCA 500, 540, 550 (with damper),FL Product Approved
Blade Style: Wind Driven/Rain Resistant
Depth: 5"
Blade Angle: 30°
Blade Spacing: 1.86"
Free Area 48 x 48: 47%
Area Velocity FPM: 1250
Details

AMCA 500, 540, 550 (with damper),FL Product Approved

1605WDM
AMCA 500, 540, 550 (with damper),Miami-Dade Qualified, FL Product Approved
Blade Style: Wind Driven/Rain Resistant
Depth: 5"
Blade Angle: 30°
Blade Spacing: 1.86"
Free Area 48 x 48: 47%
Area Velocity FPM: 1250
Details

AMCA 500, 540, 550 (with damper),Miami-Dade Qualified, FL Product Approved

1605WDVF
AMCA 500, 540, 550, FL Product Approved
Blade Style: Vertical Wind Driven/Rain Resistant
Depth: 5"
Blade Angle: 45°
Blade Spacing: 1.5"
Free Area 48 x 48: 55%
Area Velocity FPM: 1250
Details

AMCA 500, 540, 550, FL Product Approved

1605WDVM
AMCA 500, 540, 550, Miami-Dade Qualified, FL Product Approved
Blade Style: Vertical Wind Driven/Rain Resistant
Depth: 5"
Blade Angle: 45°
Blade Spacing: 1.5"
Free Area 48 x 48: 53%
Area Velocity FPM: 1250
Details

AMCA 500, 540, 550, Miami-Dade Qualified, FL Product Approved

1606DHPF
AMCA 500, 540, 550 (with damper), FL Product Approved
Blade Style: High-Performance Drainable
Depth: 6"
Blade Angle: 37.5°
Blade Spacing: 4"
Free Area 48 x 48: 60%
Area Velocity FPM: 1186
Details

AMCA 500, 540, 550 (with damper), FL Product Approved

1606DHPM
AMCA 500, 540, 550 (with damper), FL Product Approved, Miami-Dade Qualified
Blade Style: High-Performance Drainable
Depth: 6"
Blade Angle: 37.5°
Blade Spacing: 4"
Free Area 48 x 48: 60%
Area Velocity FPM: 1164
Details

AMCA 500, 540, 550 (with damper), FL Product Approved, Miami-Dade Qualified

1675WDVM
AMCA 500, 540, 550, Miami-Dade Qualified, FL Product Approved
Blade Style: Vertical Wind Driven/Rain Resistant
Depth: 5"
Blade Angle: 45°
Blade Spacing: 3/4"
Free Area 48 x 48: 47%
Area Velocity FPM: 1250
Details

AMCA 500, 540, 550, Miami-Dade Qualified, FL Product Approved

1609HM
AMCA 540, AMCA 550, Miami-Dade Qualified, FL Product Approved
Blade Style: Horizontal/Vertical
Depth: 9"
Blade Angle: 37°
Blade Spacing: 4"/2.5"
Free Area 48 x 48: 53%
Area Velocity FPM: 1011
Details
DEM-06
Blade Style: Drainable/Sightproof
Depth: 6"
Blade Angle: 30°
Blade Spacing: 1.94"
Free Area 48 x 48: 47%
Area Velocity FPM: 1250
Details

Model DEM-06 Wind-Driven Resistant Horizontal Drainable Blade Louver provides maximum weather protection in a 6" (152) deep frame, with pleasing sight-proof aesthetics that compliment any structure’s exterior styling. Suitable for...
Read More »

DEM-09
Blade Style: Storm Resistant
Depth: 8"
Blade Angle: 37
Blade Spacing: 4"(front), 1-1/2"(rear)
Free Area 48 x 48: 53%
Area Velocity FPM: 1011
Details

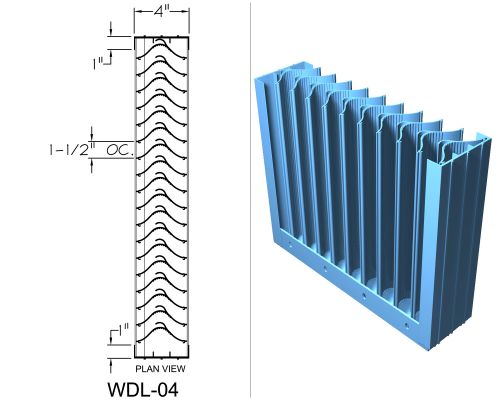

WDL-04
Blade Style: Wind Driven/Rain Resistant
Depth: 4"
Blade Angle: N/A
Blade Spacing: 1-1/2"
Free Area 48 x 48: 51%
Area Velocity FPM: 1196
Details

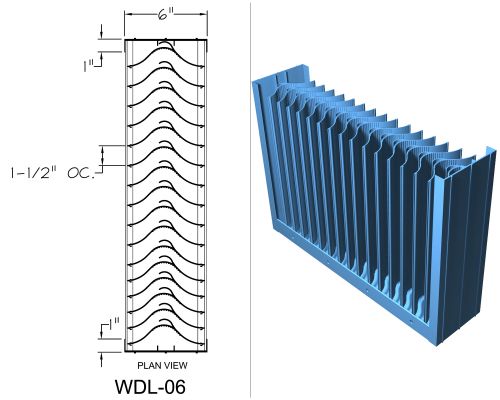

WDL-06
Blade Style: Wind Driven/Rain Resistant
Depth: 6"
Blade Angle: N/A
Blade Spacing: 1-1/2"
Free Area 48 x 48: 51%
Details
V-DEM-05
Blade Style: Drainable/Sightproof
Depth: 5"
Blade Angle: 30°
Blade Spacing: 2"
Free Area 48 x 48: 57%
Area Velocity FPM: 1121
Details
