1989
Light Duty Industrial Control Damper 4,000 fpm @ 6" w.g. |
|
|
| Max Single Section: |
48" dia |
|
Details
|
|
|
1990
Heavy Duty Industrial Control Damper 6,000 fpm @ 10" w.g. |
|
|
| Max Single Section: |
60" dia. |
|
Details
|
|
|

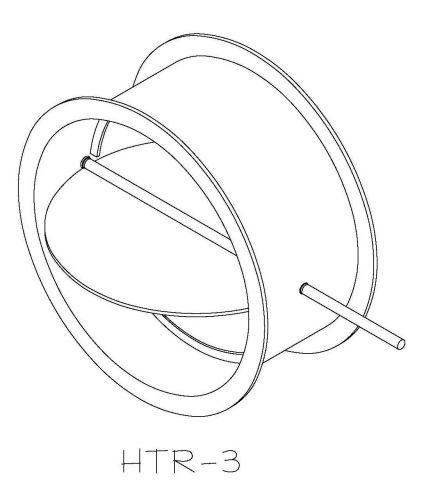

HTR-3
Industrial Round Damper: 6,000 FPM @ 10" w.g. |
|
|
| Max Single Section: |
72" dia. |
|
Details
|
Industrial Round Damper-max 6,000 FPM @ 10" w.g.
|

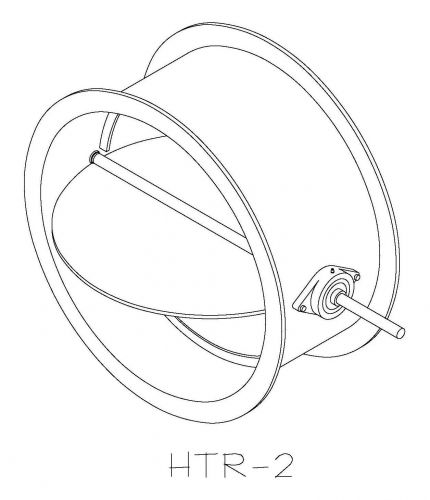

HTR-2
Industrial Round Damper: 6,000 FPM @ 17" w.g. |
|
|
| Max Single Section: |
72" dia. |
|
Details
|
Industrial Round Damper - max 6,000 FPM @ 17" w.g. static pressure.
|
1995
Heavy Duty Industrial Isolation Damper 7,000 fpm @ 20" w.g. |
|
|
| Max Single Section: |
60" dia. |
|
Details
|
|
|

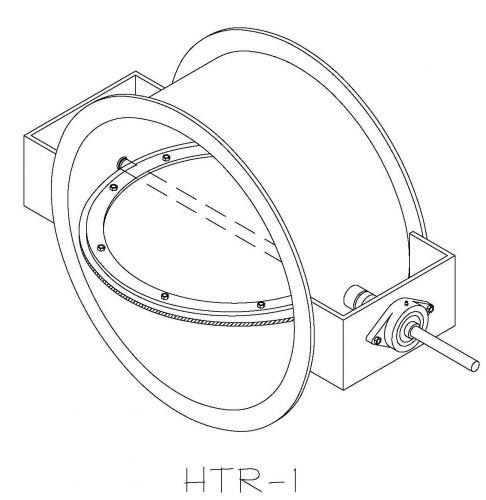

HTR-1
Extreme Low-Leakage Round Isolation Damper: 7,000 FPM @ 20" w.g. |
|
|
| Max Single Section: |
72" dia. |
|
Details
|
Extreme low-leakage round isolation damper--max performance 7,000 FPM @ 20" w.g. static pressure. 2-bolt flange bearing on standoff bracket with packing gland allows the HTR-1 to operate in conditions between -40°F to 250°F in standard construction without special bearings and materials.
|
HTR-5
Extreme High Pressure Round Damper: 7,000 FPM @ 40" w.g. |
|
|
| Max Single Section: |
72" dia. |
|
Details
|
Extreme High Pressure Round Damper-max 7,000 FPM @ 40" w.g.
|
HTR-BT
Heavy Duty Round Bubble Tight Certified Damper |
|
|
| Max Single Section: |
24" dia. |
|
Details
|
|
|
