Dampers | Control Dampers

We design and build a comprehensive line of airflow control and balancing dampers for use in commercial systems. These dampers combine low leakage and low pressure drop performance to provide optimal flow control and overall energy savings to any system, and are highly customizable to suit your specific application. Models come in aluminum, galvanized steel, and stainless steel blades and frames with a variety of either standard or optional blade and jamb seals to minimize leakage. Parallel or opposed-blade configurations for either on/off operation or modulation of airflow combined with a wide selection of manual, electric, and pneumatic operators allow you to choose the right damper for the job at hand.

Please click on the orange triangle below for more specific information regarding each of our models including product submittals.


Model Min Size W x H Max Single Section W xH Frame/Blade Gauge
600
Aluminum Airfoil Damper
Min Size: 6" x 9"
Max Single Section: 60" x 96"
Blade Gauge: .081" Alum.
Details

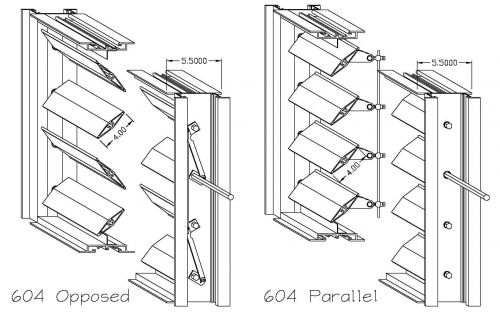

604
Min Size: 6" x 7"
Max Single Section: 60" x 96"
Blade Gauge: .081" Alum
Details
610-611
Min Size: 4" x 4"
Max Single Section: 48" x 72"
Blade Gauge: 16 gauge
Details
610R
Min Size: 4" dia.
Max Single Section: 20" dia.
Blade Gauge: 22 ga.
Details

The Safe-Air Model 610R is a manual balancing, butterfly damper which has been designed for all types of round ductwork applications and is suitable for use in the majority of low pressure and velocity commercial HVAC systems. The 610R...
Read More »

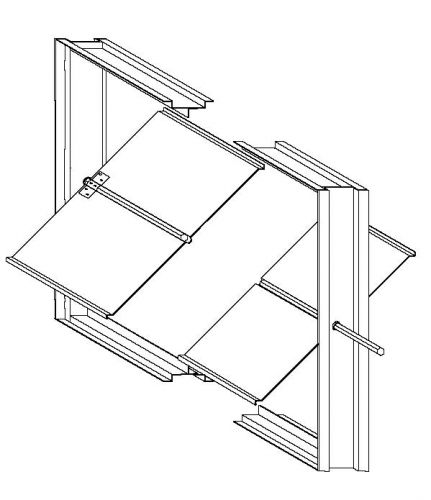

612
Min Size: 4" x 4"
Max Single Section: 48" x 11"
Blade Gauge: 16ga.
Details
612R
Min Size: 4" dia.
Max Single Section: 24" dia.
Blade Gauge: 2 x 20 ga.
Details

Model 612R is an ultra-low leakage steel butterfly control damper which has been designed for all types of round ductwork applications. Suitable for use in low to medium pressure and velocity commercial HVAC systems, the 612R installs quickly...
Read More »

616/617
Min Size: 4" dia.
Max Single Section: 72" dia.
Blade Gauge: 16ga.
Details

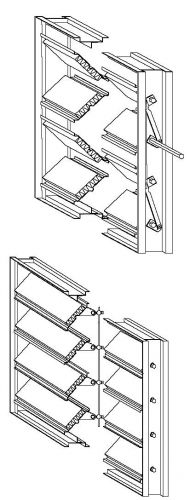

630/631
Min Size: 4" x 8"
Max Single Section: 48" x 72"
Blade Gauge: Double wall 16ga.
Details

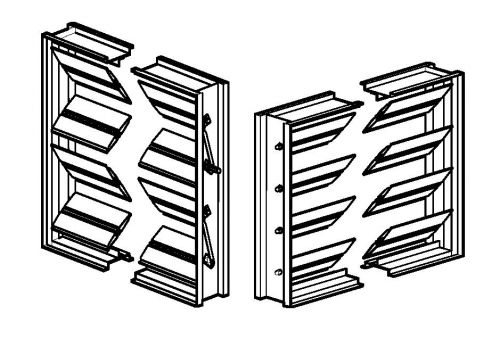

650/651
Min Size: 4" x 8"
Max Single Section: 48" x 72"
Blade Gauge: Double wall 20ga.
Details

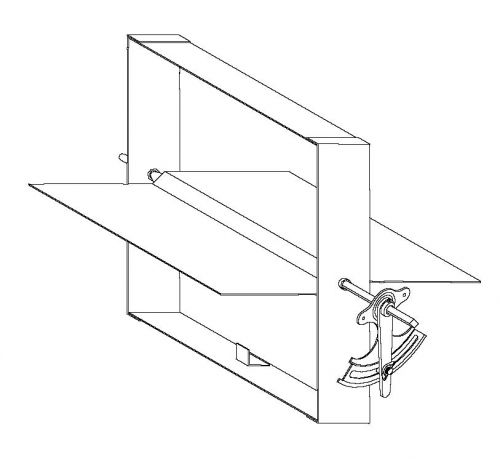

BDD
Min Size: 6" x 6"
Max Single Section: 18" x 12"
Blade Gauge: 20ga.
Details

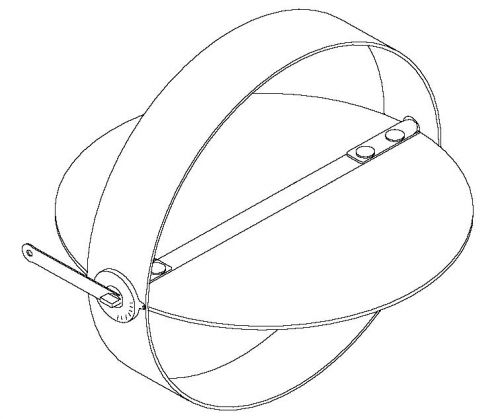

BDR
Min Size: 4" dia.
Max Single Section: 24" dia.
Blade Gauge: 20ga.
Details
Face & By Pass Mixing Damper
Face & By Pass Mixing Damper
Details
Installation
and Maintenance Instructions
Details
